| Weight | 8 Lbs |

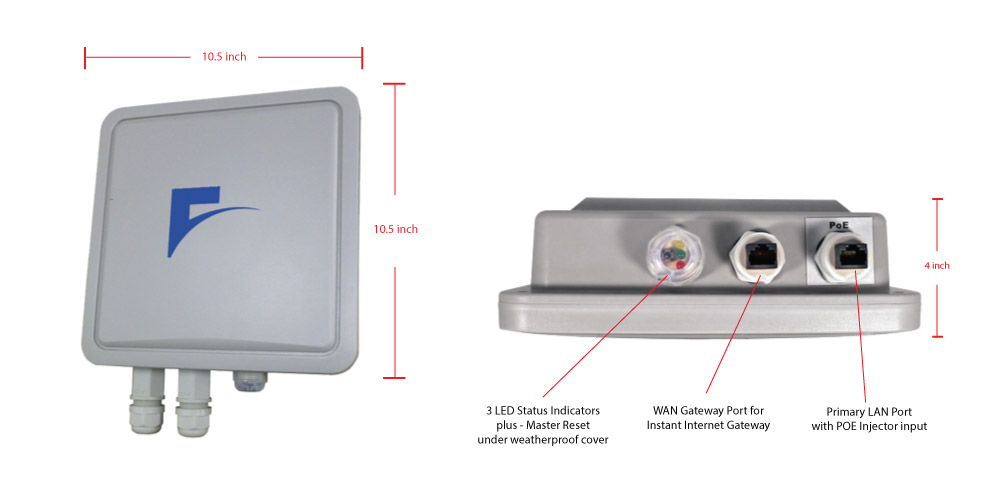

| Dimensions | 10.5 × 10.5 × 4 Inch |
| Configuration Options | Fully Configured, Non-Configured |
| CAT5 Cable Length | 25 Ft. CAT5e UV Cable, 50 Ft. CAT5e UV Cable |
|
|
| Bus Type | CAT5 – 10/100 Standard network (Gigabyte compatible with proper switch or router) |
| Maximum CAT5 cable length | Up to 100 meters (330 feet) of CAT5 cable may be used with Figgers 24V POE Injectors |
| Wireless Standard | 802.11B, 802.11G – 802.11N – 300MBPS MiMo connection speeds. Complies with all 802.11x protocol |
| Operating Frequency | 2400 to 2484 MHz (Ch 1-11 US) International Version Available by software settings |
| Data Rate | 802.11b: 11Mbps/5.5Mbps/2Mbps/1Mbps (with automatic adjust) 802.11g: Up to 108Mbps/54Mbps/48Mbps/36Mb/24Mbps/28Mbps/9Mbps/6Mbps(with automatic adjust) 802.11N: Up to 300 MBPS data rate. Backwards compatible with B and G technology for bridge or repeater standards HT20/40 Throughput – Fully Adjustable for maximum bandwidth and throughput Bandwidth Sharing feature – Allows for seamless point to multi-point hops, dividing bandwidth as needed for all remote WDS Client connections |
| Modulation | 802.11b: DSSS (Direct Sequence Spread Spectrum) 802.11g: OFDM (64-QAM/16-QAM/QPSK/BPSK) 802.11n: Standard, 150 / 300mpbs MiMo bridging standards. |
| Operating Power | 110VAC Direct AC Power (12v POE option available) |
| Average Current | 0.8 Amp @ 24V POE input |
| Peak Current | 0.6A 24V POE input |
| Transmit Power (ERP) | 802.11b: 800mW (29dBm) 802.11g: 500mW (27dBm) more power output available for export versions. *Total EIRP Limits, at maximum FCC limits. |
| Receive Sensitivity | 802.11b: -98dBm (typical) at 11Mbps -91dBm (typical) at 6Mbps 802.11g: -94dBm (typical) at 54Mbps -96dBm (typical) at 1Mbps 802.11n: (typical) at 150 or 300 MBPS MBPS -92dBm (not including antenna gain) Integrated MiMo Dual directional antenna, increases gain by 15db across spectrum. |
| Working Range | Outdoor: @11Mbps, 5820 ’ (5Miles) 1Mbps150 – 300 MBPS link up to 5 miles with packet adjustment and direct line of sight. Ranges up to 15 miles or farther have been reported from our customers, however, specs guaranteed at up to 5 miles line of sight, rural locations. Urban transmission and receive distances will vary depending on terrain, obstructions and interference. |
| Security | All Encryption Methods WEP, WPA, WPA2, WPA2-PSK, WPA-Enterprise with Radius Authentication. |
| Antenna | 15dB NLOS MiMo, allowing simultaneous |
| Antenna Vertical Beamwidth | 22 Degrees |
| Antenna Horizontal Beamwidth | 22 Degrees |
| Operating Temperature | -20°C to 45°C |
| Storage Temperature | -30°C to 70°C |
| Humidity | 100%, Non-Condensing fully waterproof units |
| Dimensions | 10.5×10.5×5 for backfire. See dimensions of all items separately. |
| Color | Light Gray UV – ABS Radome – UV Resistant |
| Warranty | 1 Year FCI warranty End user is responsible for FCC limitations of power output and antenna radiation. |
